Trailer Towing with a T1N Sprinter: What You Need to Know
Trailer Towing with a T1N Sprinter: Complete Guide
If you own a 2002–2006 T1N Sprinter (Mercedes-Benz, Dodge, or Freightliner), you already know these vans are reliable workhorses. But can they tow a trailer? Absolutely, if you understand their limits and set them up correctly.
Whether you’re hauling a camper, car hauler, or utility trailer, this guide covers everything you need to know about towing safely with a T1N Sprinter, including factory options, upgrades, and driving tips.
⚠ A Word of Caution
The T1N Sprinter was not designed primarily as a tow vehicle. Its frame and drivetrain are optimized for cargo hauling, not continuous heavy towing like a pickup truck.
For occasional or moderate towing, the T1N does fine if set up correctly. But if you plan long cross-country trips with a heavy trailer, it may be wise to consider:
- Using a dedicated tow vehicle for long hauls
- Limiting towing to under 75% of the rated capacity for safety and drivetrain longevity
- Planning routes that avoid long mountain passes in extreme heat
Towing is best treated as an occasional task, not the van’s primary job.
1. T1N Sprinter Towing Capacity
T1N Sprinters aren’t heavy-duty pickups, but they can tow respectably with the right setup. Here are the core numbers for most 2500 models:
- Factory towing capacity: ~5,000 lbs (2,270 kg) with a Class III hitch
- Tongue weight limit: ~500 lbs (225 kg)
- GCWR (Gross Combined Weight Rating): ~13,500 lbs
Check your door jamb sticker for:
- GVWR – Gross Vehicle Weight Rating (max weight of van + cargo + passengers)
- GAWR – Front and rear axle ratings
Safe towing means your van + cargo + trailer all stay under these combined limits.
2. Did the T1N Come with a Factory Hitch?
Yes, some T1N Sprinters came with an OEM receiver hitch as part of the optional X22 Trailer Hitch Package:
- Included: 2″ factory hitch + 7‑pin trailer wiring harness
- Pre-wired for trailer brakes and lights from the factory
If your van doesn’t have the X22 option, you may still have factory trailer wiring, especially if your van has a rear step bumper.

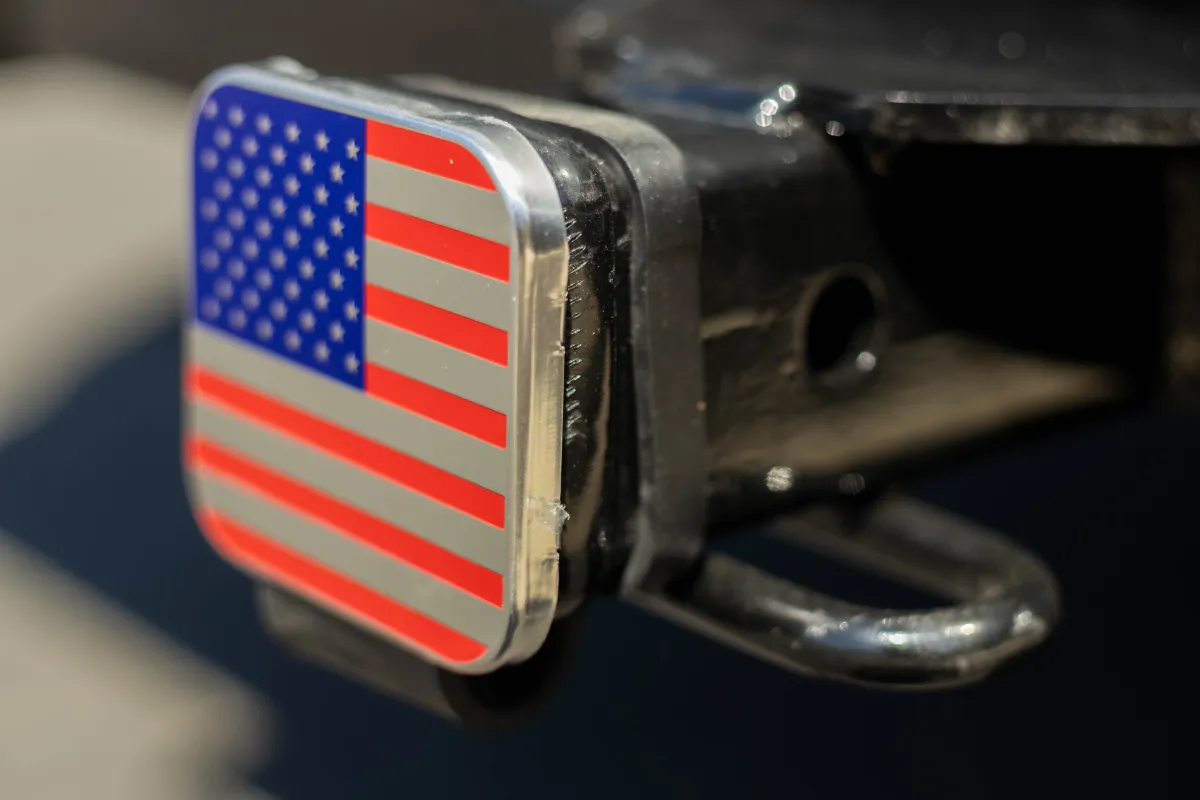

Tip: Check your van’s build sheet or look under the rear bumper. A welded cross‑member with a 2″ receiver means you already have the OEM setup.
Aftermarket Option:
- CURT Class III Hitch for T1N Sprinter – Bolt-on, 5,000 lbs capacity
- CURT Class IV Hitch for T1N Sprinter – Bolt-on, 10,000 lbs capacity (not necessary but that's what I personally have installed on my T1N)
3. Essential Towing Gear
Even if you have the factory hitch, you’ll need the right gear for safe and legal towing:
- Brake Controller – Required for trailers over 3,000 lbs
- 7-Pin Wiring Harness – For trailer brakes, charge line, and reverse lights
- Weight Distribution (Optional) – For heavy or long trailers to reduce sway
(Affiliate links – As an Amazon Associate, we earn from qualifying purchases.)
4. Driving Tips for Safe Towing
Towing with a T1N requires a careful approach since OM612/OM647 diesels are torquey but not race engines:
- Downshift on Grades – Keep RPMs around 2,500–3,000 for power and cooling.
- Watch Temperatures – Consider an aux transmission cooler for long hauls.
- Leave Extra Space – A trailer adds a lot to your stopping distance.
- Balance Your Load – Keep 10% of trailer weight on the tongue to prevent sway.
- Check Tire Pressures – Both van and trailer tires should be properly inflated.
- Plan Rest Stops – Towing puts heat into the transmission; periodic cool-downs help.
5. Common T1N Towing Upgrades
Many owners add simple upgrades for safer, smoother towing:
- Air Helper Springs – Reduce rear sag
- Aux Transmission Cooler – Protects your 5‑speed auto
- Extended Mirrors – Improve rear visibility
- Proportional Brake Controller – Smooth, automatic trailer braking
If you plan to tow near the 5,000 lb max, these upgrades are highly recommended.
6. Real-World T1N Towing Experiences
T1N owners report success towing:
- Pop-up campers and small travel trailers
- Utility trailers for ATVs, motorcycles, or work gear
- Car haulers with small sedans
One owner towed a 2,500‑lb camper cross‑country, averaging 16–18 MPG with no overheating—just patient driving, rest breaks, and proper load balance.
7. Maintenance & Rust Check
Towing puts extra stress on a 20‑year‑old van. Before you hitch up:
- Inspect frame rails and hitch mount points for rust
- Keep brakes, cooling system, and transmission fluid fresh
- Grease suspension and driveline if towing often
- Pre-trip inspections are critical for long hauls
Southern, rust‑free vans are always better tow rigs than northern salt‑exposed ones.
Conclusion
The T1N Sprinter can be a capable trailer hauler when properly set up, but it wasn’t built to be a primary tow vehicle.
If you plan occasional short to medium hauls, it will serve you well with the right hitch, brake controller, and upgrades.
For frequent long-distance towing, consider using a dedicated truck to reduce wear and stress on your T1N.
Whether you’re pulling a camp trailer, equipment, or small car, respect the van’s limits and it will reward you with reliable service.
Have a T1N towing story?
Share it with our community! What’s the heaviest or farthest you’ve towed with your T1N?
