Keep Your T1N Sprinter Alive: Essential Maintenance & Prevention Tips
Description:
Learn the best T1N Sprinter maintenance tips to keep your 2002–2006 van reliable. Prevent costly repairs with simple checks, fluids, and preventive upgrades.
Tags: t1n sprinter, motul, maintenance, diy, van life, prevention
If you own a 2002–2006 T1N Sprinter (Dodge, Freightliner, or Mercedes-Benz), you already know:
Reliability comes from preventive maintenance.
By using high-quality fluids and following a consistent maintenance schedule, your T1N can run well past 500,000 miles.
Here’s the ultimate maintenance and prevention guide, featuring Motul fluids for a unified, high-quality approach.
1. Stay on Top of Fluids
Your van’s fluids are its lifeblood. Ignoring them is the fastest way to kill an otherwise bulletproof OM612 or OM647 engine.

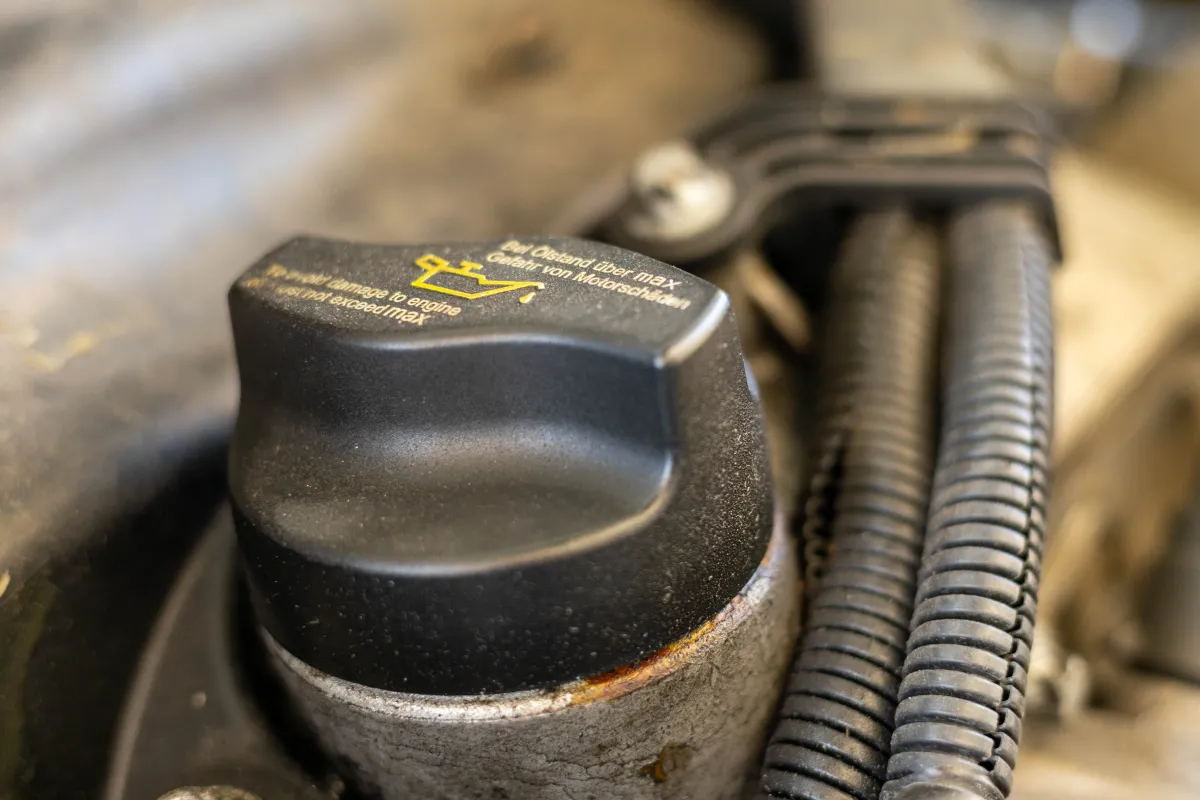

- Engine Oil: Change every 8,000–10,000 miles with a full synthetic MB 229.5 oil.
Recommended Oils for T1N Sprinter
-
- When to use:
- Live in cold climates (below 0°F / ‑18°C)
- Want maximum cold-start protection
- Why:
- Flows faster on cold starts, preventing early engine wear
- When to use:
-
- When to use:
- Drive in moderate to hot climates
- Have a high-mileage engine that consumes oil
- Why:
- Slightly thicker at operating temperature; helps reduce oil burn and protect worn components
- When to use:
Tip: In most of the U.S., 5W‑40 is a great year‑round choice, while 0W‑40 shines in cold winters or for vans that see frequent short trips.
Transmission Fluid (NAG1 / 722.6)
- Motul Multi ATF (MB 236.14)
- Change Interval: 40–60k miles
- Capacity: ~8.5 quarts for full drain including torque converter
- Tip: Replace the filter and pan gasket during service
Differential Fluid
- Motul Gear 300 75W‑90 (GL‑5)
- Capacity: ~1.6 quarts
- Change Interval: 60–100k miles
- Why: Protects gears and bearings, prevents whine on high‑mileage vans
Power Steering & Hydraulic System
- Motul Multi HF (CHF 11S equivalent)
- Capacity: ~1 quart
- Change Interval: 5 years or if fluid looks dark
- Tip: Flushing old fluid keeps the steering rack and pump happy
Brake Fluid
- Motul RBF 600 DOT 4
- Change Interval: 2 years
- Capacity: ~1 liter for full flush
- Why: High boiling point protects ABS and brakes under towing or mountain driving
Coolant
- Zerex G‑05 (HOAT, MB‑approved)
- Change Interval: 3 years
- Capacity: ~3 gallons 50/50 mix
- Tip: Regular flushing prevents heater core clogs and EGR issues
2. Prevent Rust Before It Starts
The T1N’s Achilles heel? Rust, especially in the rockers, wheel arches, and undercarriage.
- Wash the undercarriage often—especially after winter or salt exposure
- Treat the inside of panels with cavity wax
- Touch up small chips immediately to prevent spread
3. Fuel & Air System Care
Use high-quality OEM filters to protect your engine and fuel system:
- Fuel Filter: Replace every 20k–30k miles
- Air Filter: Replace annually, especially if driving dusty roads
- Diesel Additive: Keeps injectors clean and fights ULSD fuel issues
4. Chassis & Suspension Checks
The T1N handles surprisingly well for a box on wheels, but worn components will sneak up on you.
- Front ball joints and tie rods are common wear items
- Shocks: Replace every 100k miles or when ride gets bouncy
- Check rear leaf spring bushings and rear axle U-bolts for corrosion
5. Electrical & Battery Care
Electrical gremlins are rare on the T1N, but preventive steps help:
- Keep battery terminals clean and use dielectric grease
- Inspect the ground straps between engine and chassis annually
- If stored outdoors, consider a trickle charger to keep the battery topped up
Final Thoughts
The T1N Sprinter is legendary for its reliability, but that only lasts if you give it the attention it deserves.
Spending a few hours every couple months on preventive care will save you thousands in future repairs.
Using Motul fluids for most systems keeps your maintenance simple and consistent, while OEM filters and a proper HOAT coolant protect the rest.
