Common T1N Sprinter Issues and How to Prevent Them
Owning a T1N Sprinter from 2002 to 2006 is rewarding - you get a van that’s reliable, efficient, and mechanically simple compared to modern models. But even these legendary workhorses have predictable trouble spots. The key difference between a van that runs forever and one that breaks your wallet is proactive maintenance.
This detailed guide covers the 13 most common T1N Sprinter issues, how to recognize them early, and the steps to prevent them from happening in the first place.

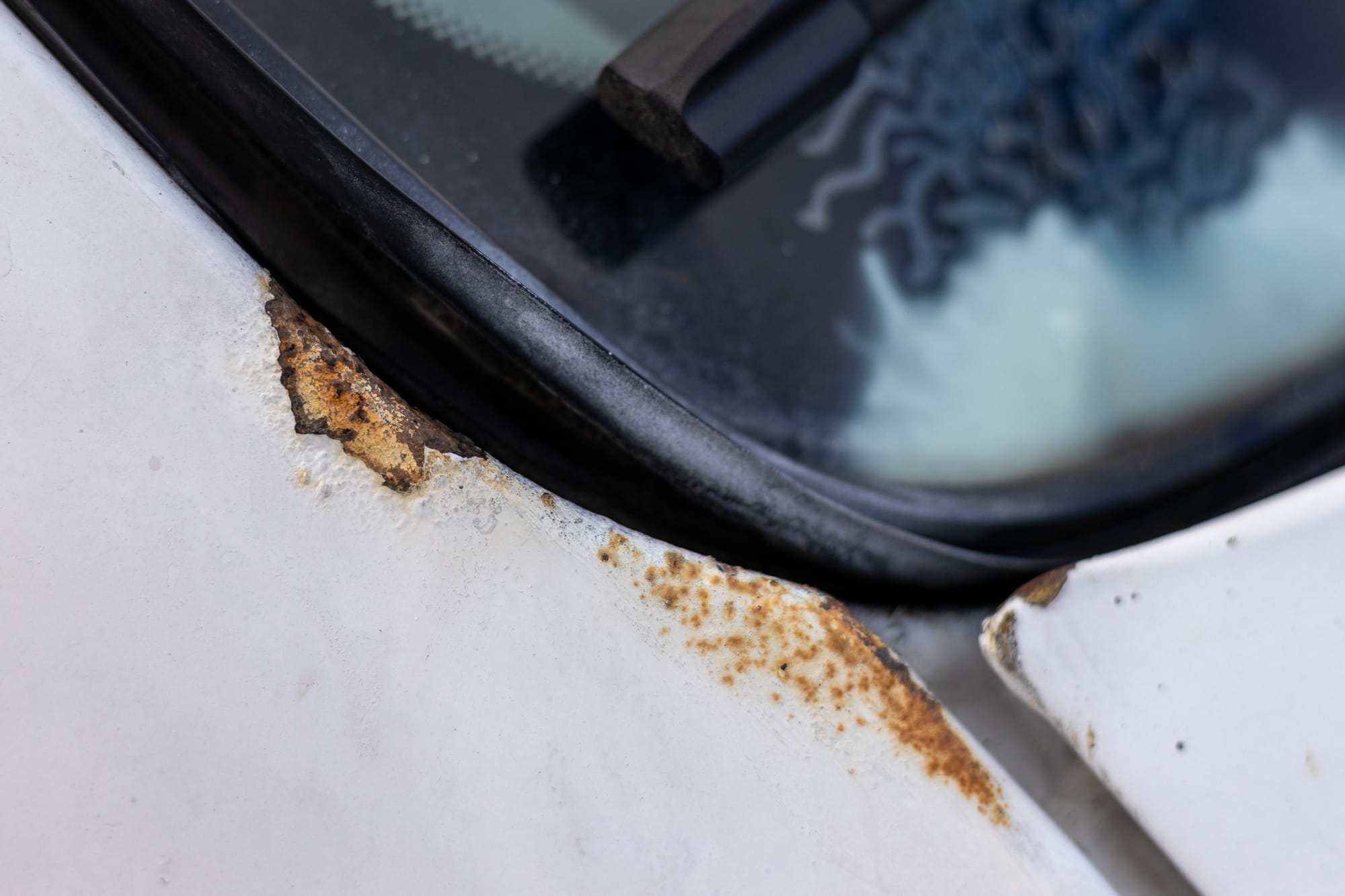

1. Rust and Corrosion
Rust is the single most widespread issue on T1N Sprinters. Even well-maintained vans eventually show rust if left untreated.
Symptoms
- Bubbling paint near the windshield, wheel arches, and door sills
- Rust forming along seams or under trim
- Corrosion underneath the van or on step panels
Cause
The factory rustproofing was minimal. When salt or moisture gets under the paint, it spreads unseen and eats away at the metal.
Why It Matters
Rust on seams or the windshield frame can lead to water leaks, interior corrosion, or even structural weakening.
How to Prevent It
- Wash the underbody regularly, especially after driving on salted roads.
- Apply a wax-based rust inhibitor to internal panels every year or two.
- Touch up small paint chips before rust takes hold.
- Replace damaged windshield seals to stop moisture intrusion.
Recommended Products

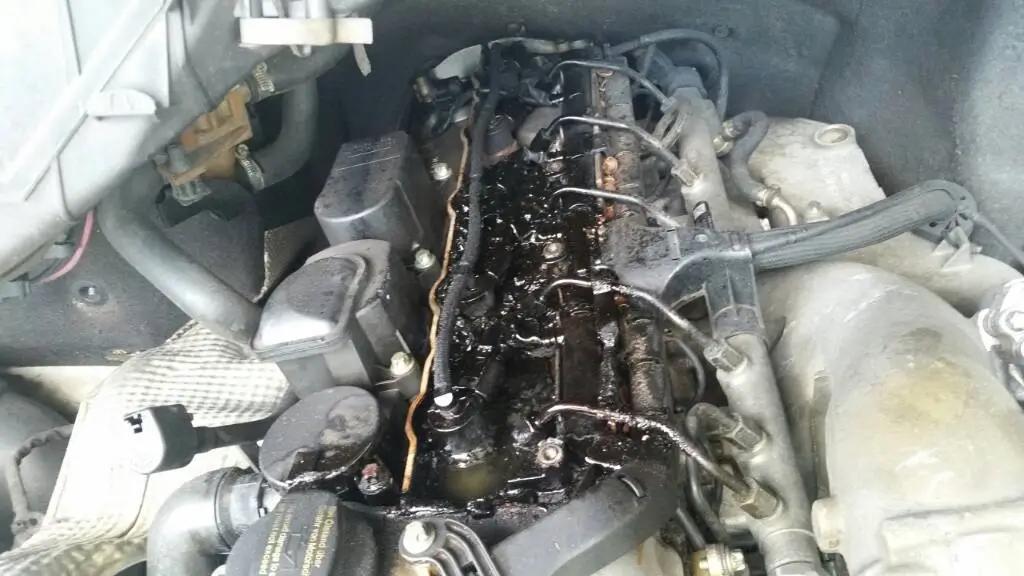

2. Injector Seal Leaks (Black Death)
The infamous “Black Death” looks scary but is completely preventable with routine checks.
Symptoms
- Black, tar-like residue around injectors
- Diesel odor inside the cabin
- Chuffing sound when idling
Cause
The copper washer under each injector can leak combustion gases, allowing carbon buildup to harden around the injector base.
Why It Matters
If ignored, the leak can erode the aluminum cylinder head, making removal extremely difficult and expensive.
Prevention
- Inspect under the injector cover during every oil change.
- Use new copper washers and bolts each time.
- Clean injector seats with a reaming tool.
- Torque to 62 in-lbs (7 Nm) plus a 90° turn.
Recommended Tools

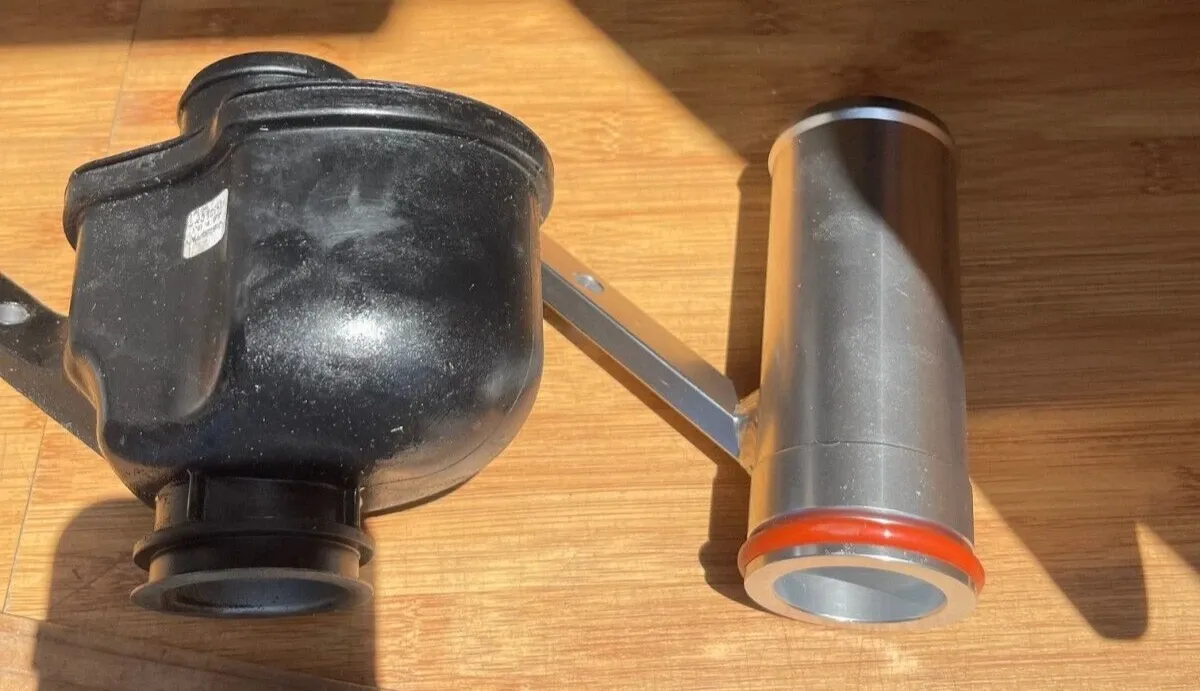

3. Turbo Resonator Cracks
A cracked turbo resonator is one of the most common causes of sudden limp mode on the 2004–2006 OM647 engine.
Symptoms
- Sudden loss of power
- Hissing sound under boost
- Turbo under-boost code
Cause
The factory resonator is made from thin plastic that becomes brittle from heat and vibration.
Prevention
- Replace it with an aluminum resonator eliminator.
- Inspect intercooler hoses for oil seepage or softness.
Recommended Upgrade

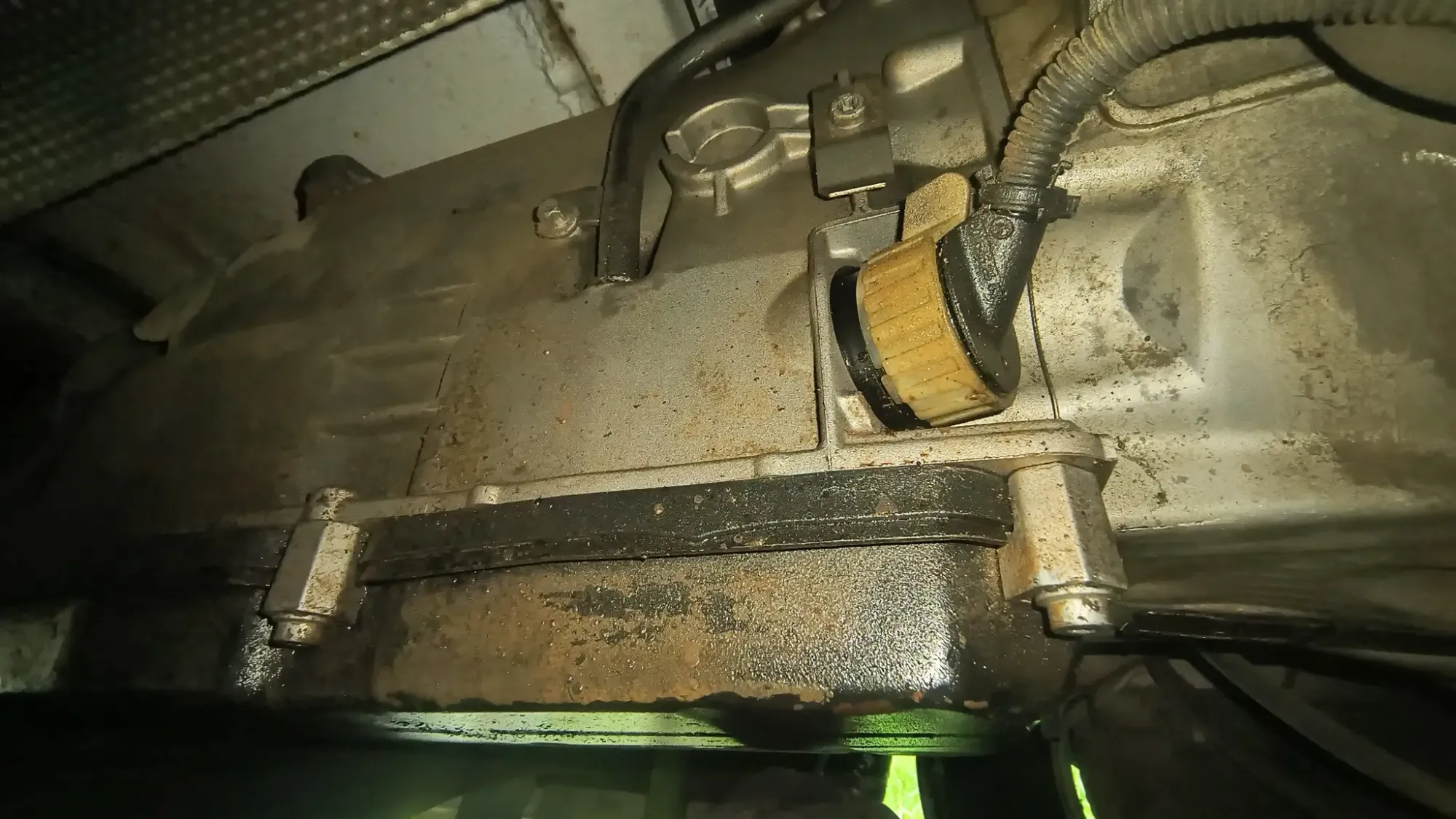

4. Transmission Connector and Conductor Plate Issues
The NAG1 transmission is durable but sensitive to fluid contamination.
Symptoms
- Harsh or erratic shifting
- ATF leaking near the electrical plug
- Transmission fault codes
Cause
The connector plug O-rings shrink with age, allowing ATF to wick into the wiring harness and reach the Transmission Control Module (TCM).
Why It Matters
Fluid in the TCM can cause shifting problems or total module failure.
Prevention
- Replace the plug adapter at each transmission service.
- Use Mercedes 236.14-spec ATF.
- Keep the connector area spotless during reassembly.
Recommended Parts

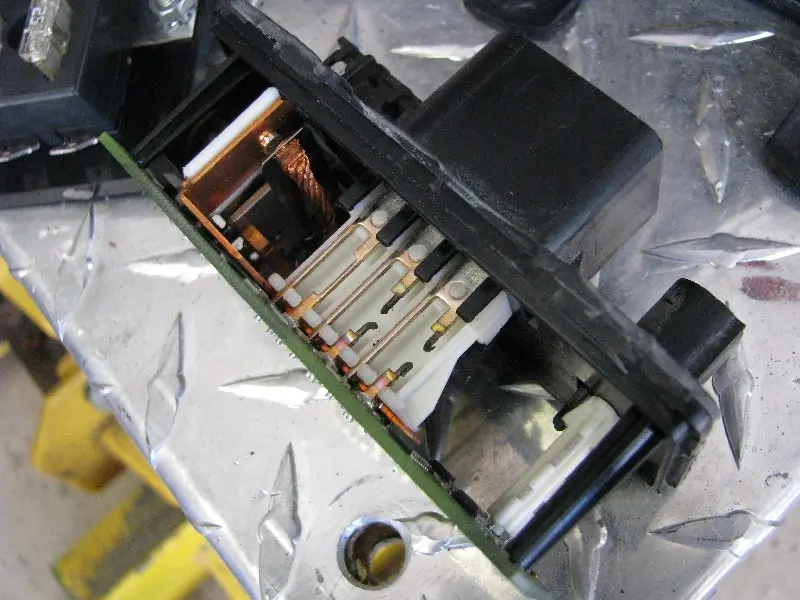

5. Glow Plug and Module Failure
Cold-start issues are common in older diesels, but in the T1N, they’re often caused by failing glow plugs or the module that controls them.
Symptoms
- Long cranking when cold
- Glow plug light stays on
- Codes for glow circuit faults
Cause
Glow plugs eventually short or open, damaging the control module. They can also seize in the cylinder head if never removed.
Prevention
- Test glow plugs with a multimeter every fall.
- Apply anti-seize and cycle them yearly.
- Replace the control module with an updated solid-state version.
Recommended Parts

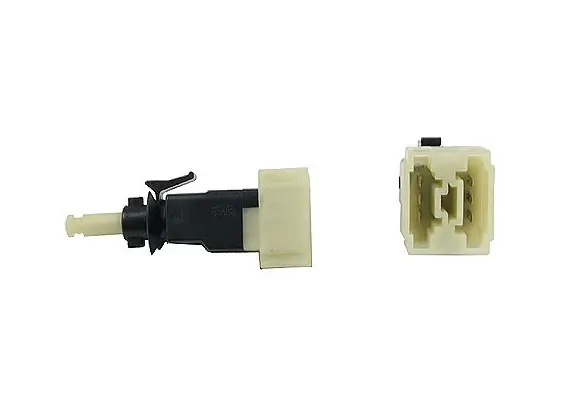

6. Brake Light Switch Problems
A small plastic switch can cause big confusion in the T1N.
Symptoms
- Brake lights stuck on or off

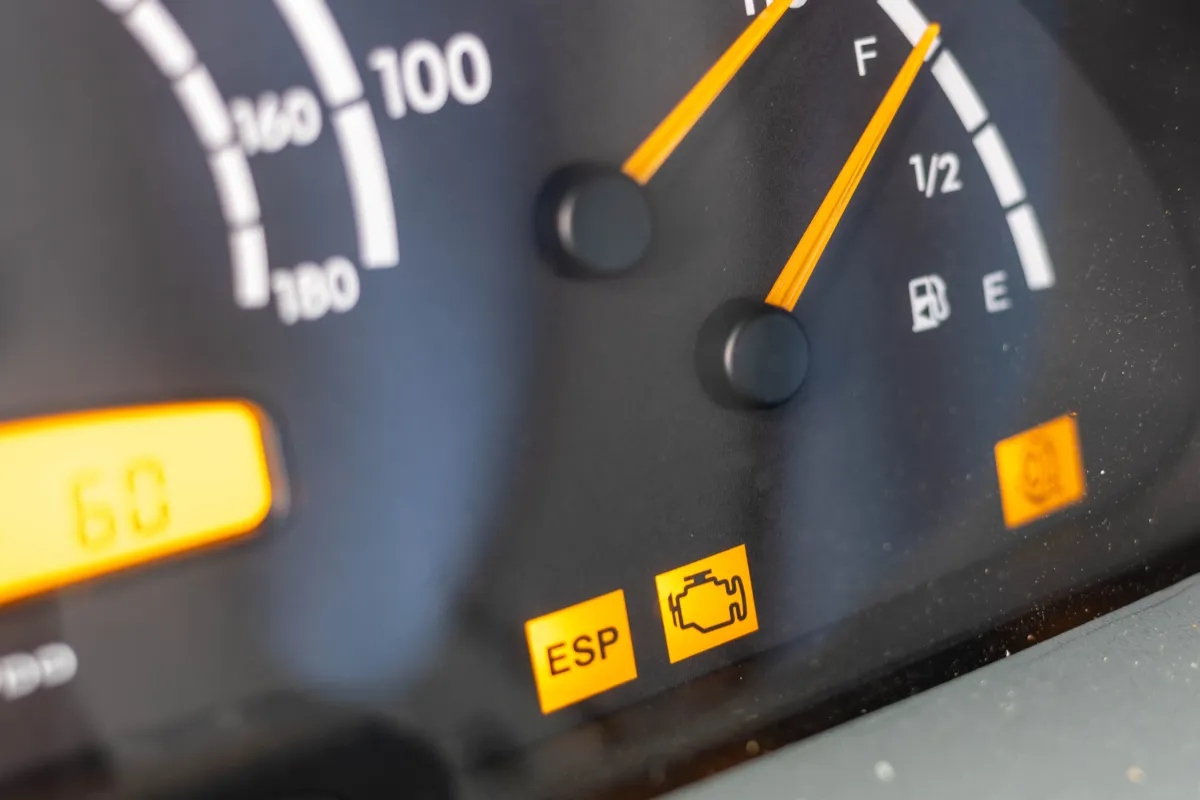

- ABS or ESP lights illuminate
- Transmission stuck in park
Cause
The brake switch wears or falls out of alignment. Because it feeds multiple control systems, a single failure causes a cascade of warning lights.
Prevention
- Replace the switch every few years.
- Adjust its position properly after installation.
- Keep a spare in the glovebox for emergencies.
Recommended Part

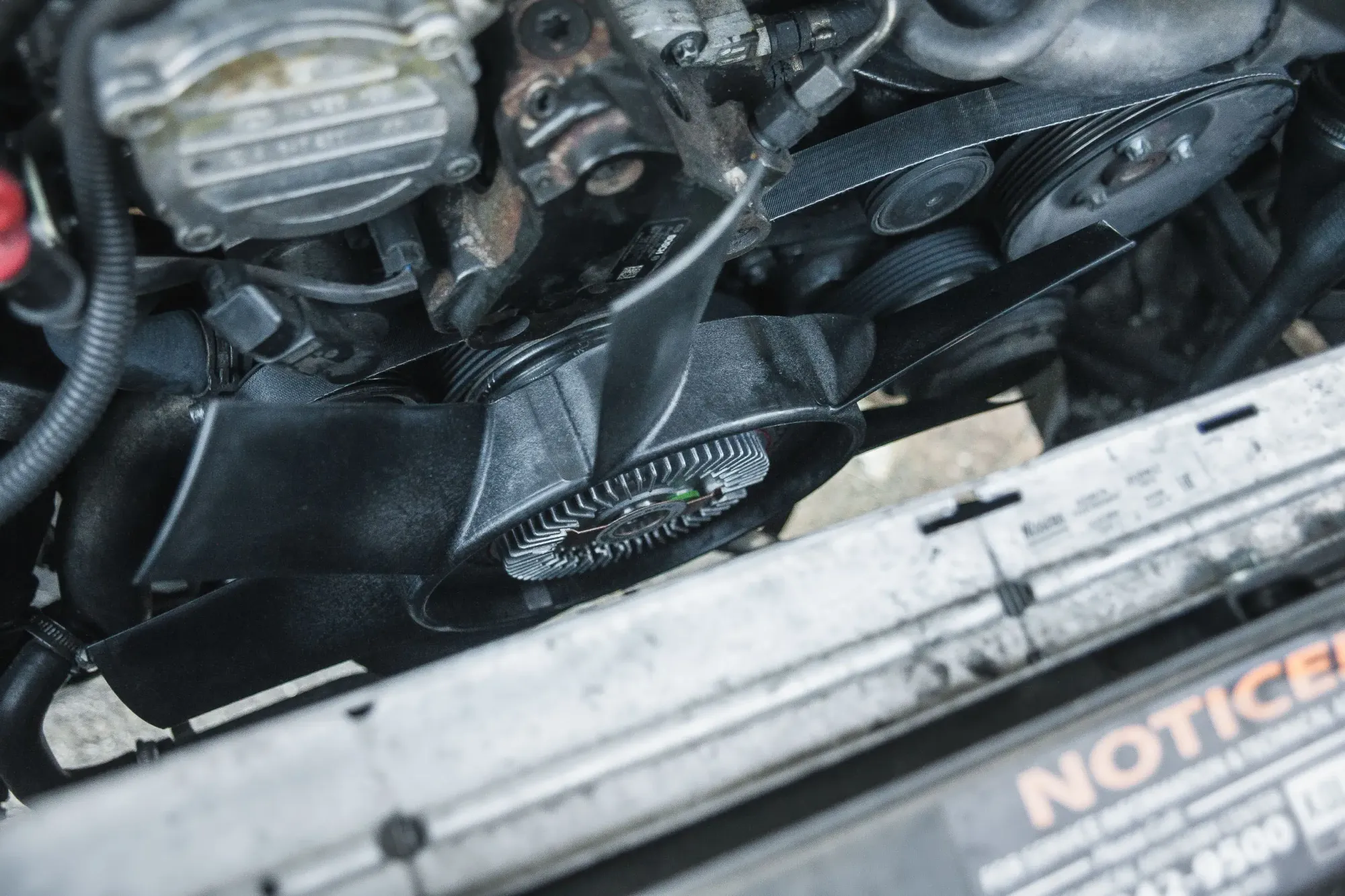

7. Cooling System Failures
Cooling components age out just like belts or filters - and when they do, overheating isn’t far behind.
Symptoms
- Overheating on hills or idle
- Coolant leaks at radiator or pump
- Weak cabin heat
Cause
Plastic radiator tanks crack, hoses collapse, and thermostats fail to regulate properly.
Prevention
- Inspect hoses annually for bulges or soft spots.
- Replace coolant and thermostat every 3–4 years.
- Always use G-05 HOAT coolant - never mix types.
Recommended Parts

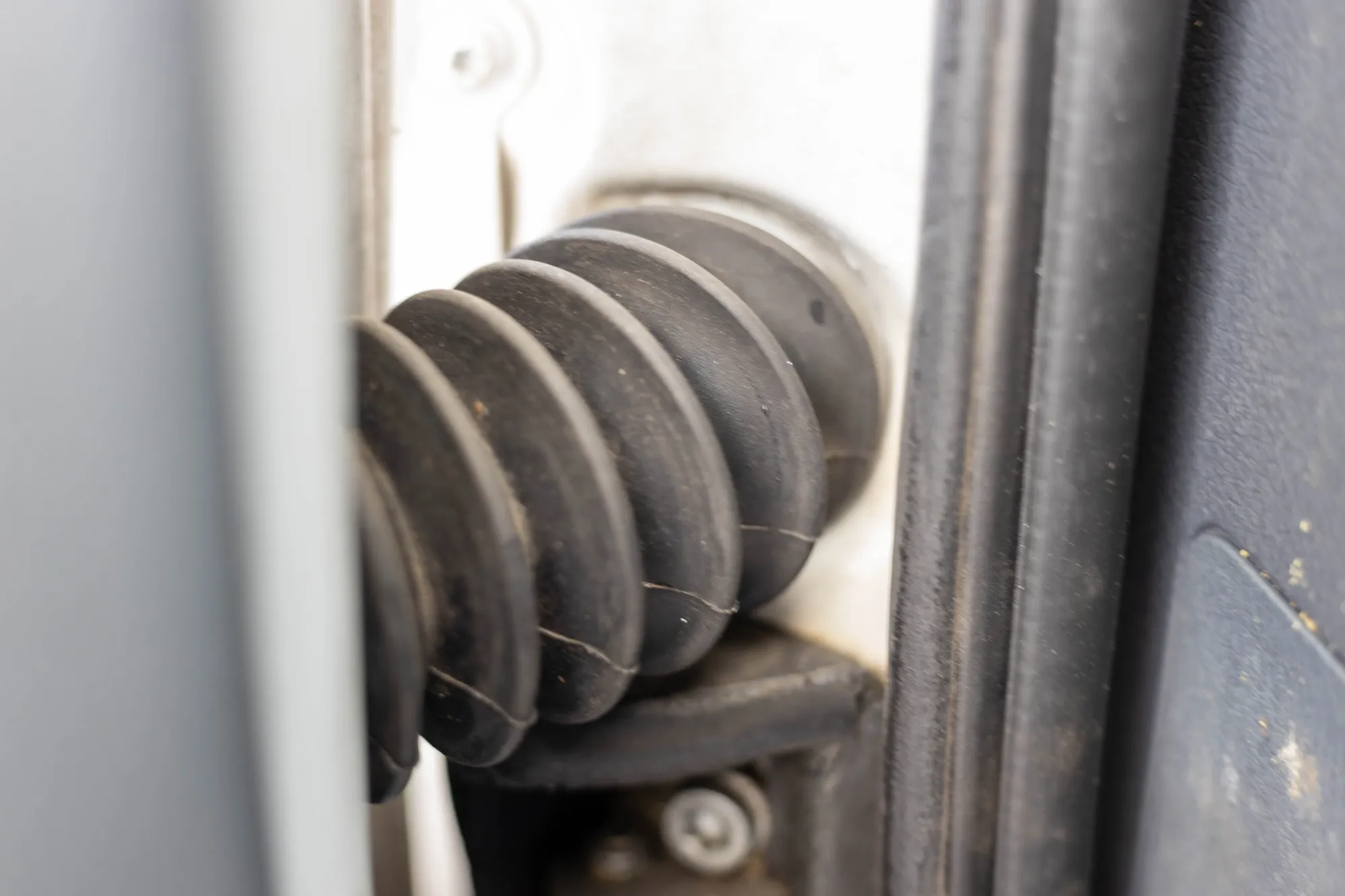

8. Door Wiring Harness Fatigue
The constant flexing of door harnesses eventually breaks internal wires.
Symptoms
- Power locks or windows fail intermittently
- Mirror adjustment stops working
- Door sensor errors
Cause
The wiring inside the hinge boot becomes brittle and snaps from repeated movement.
Prevention
- Inspect harnesses during maintenance.
- Repair broken wires using flexible silicone wire and heat-shrink tubing.
- Protect with dielectric grease and loom wrap.
Recommended Tools

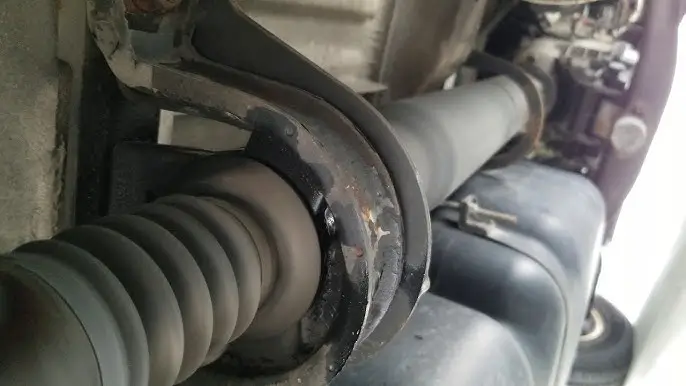

9. Driveshaft Bearing and U-Joint Wear
High-mileage Sprinters often develop driveline vibrations that trace back to the driveshaft assembly.
Symptoms
- Vibration at highway speeds
- Clunk when shifting gears
Cause
Rubber in the center support bearing deteriorates, and sealed U-joints lose lubrication.
Prevention
- Inspect the driveshaft every oil change.
- Replace non-serviceable shafts as a complete unit.
- Check alignment and balance after replacement.
Recommended Part

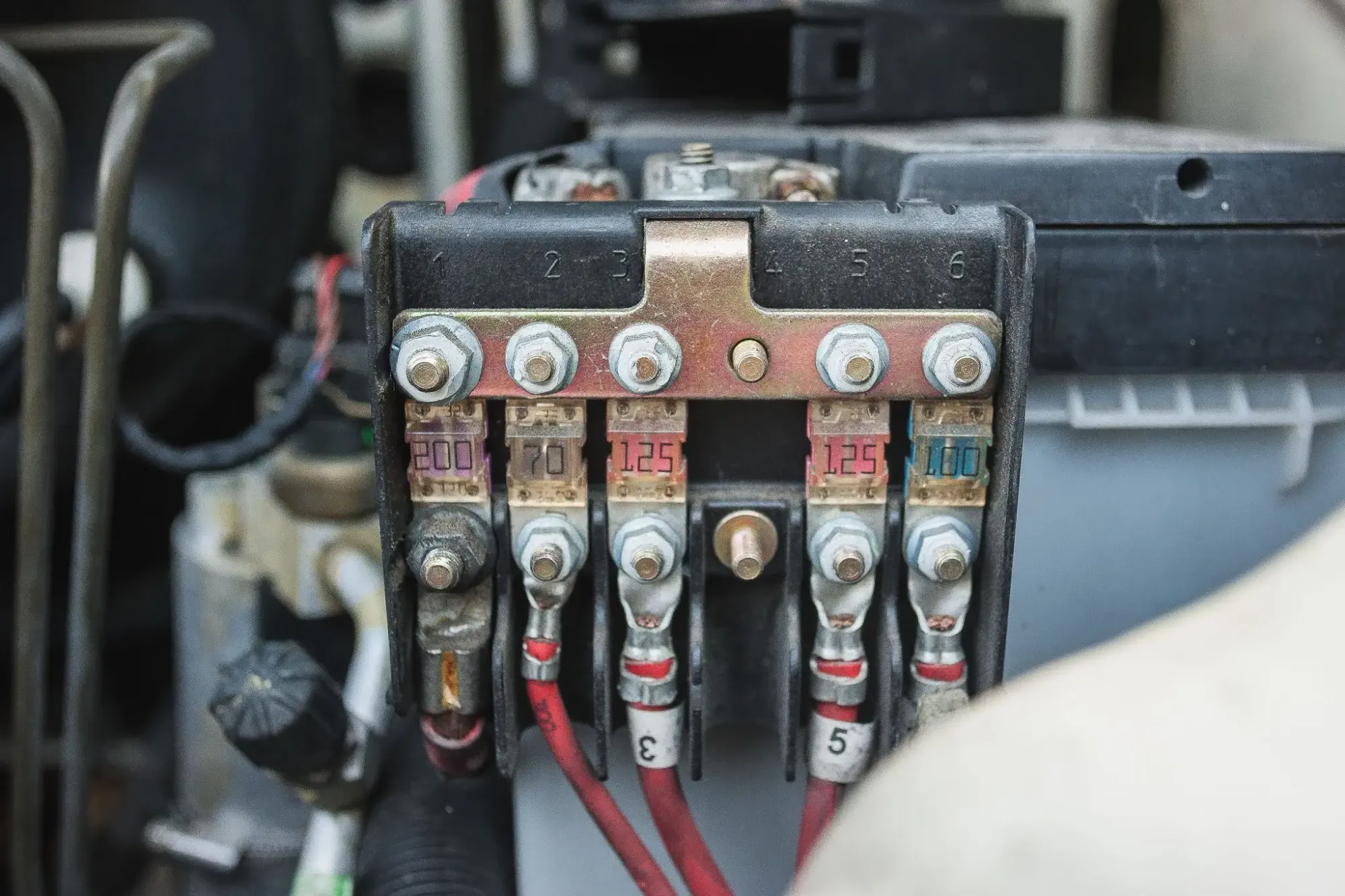

10. Alternator and Ground Issues
Aging electrical systems need clean grounds and steady voltage.
Symptoms
- Battery light flickers
- Low voltage readings
- Random sensor or module errors
Cause
Corrosion or loose grounds create voltage drops that confuse the van’s sensors and ECUs.
Prevention
- Test charging voltage monthly (13.8–14.2 V).
- Clean and tighten all ground points.
- Upgrade alternator for high-draw camper builds.
Recommended Tools

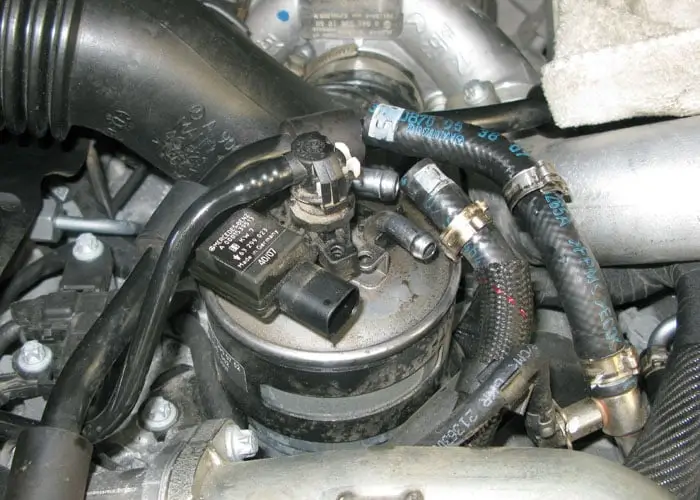

11. Fuel Filter and Sensor Leaks
Fuel system air leaks cause hard starts and rough running, especially after sitting overnight.
Symptoms
- Air bubbles in the clear fuel line
- Long crank before starting
- Diesel smell under the hood
Cause
O-rings harden or crack on the filter fittings or water sensor.
Prevention
- Replace the fuel filter every 20–30 k miles.
- Lubricate O-rings with diesel before installation.
- Tighten fittings only until snug.
Recommended Filter

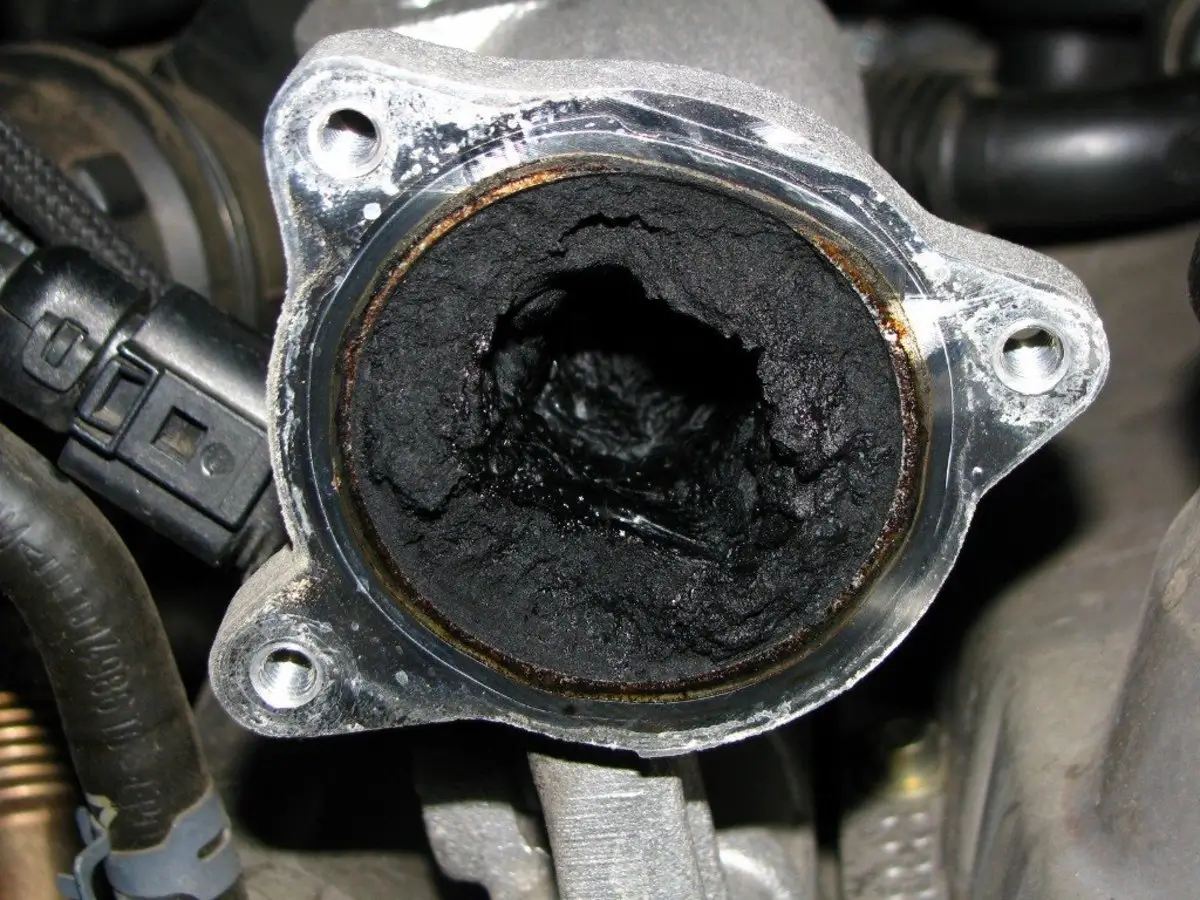

12. EGR Valve Clogging
The EGR system helps emissions but can choke the engine when it clogs.
Symptoms
- Rough idle
- Reduced power
- Black exhaust smoke
Cause
Soot and carbon buildup from short trips and poor diesel fuel settle inside the EGR valve and intake.
Prevention
- Clean the EGR valve every 40–50 k miles.
- Use diesel system cleaner regularly.
- Take the van on long highway drives to burn off deposits.
Recommended Products
13. Proactive Maintenance Schedule
Preventive maintenance is the single best way to keep your T1N healthy.
| Interval | Task |
|---|---|
| Every 10,000 mi | Oil and filter (MB-229.5 spec) |
| Every 20,000 mi | Replace fuel filter, inspect belts and hoses |
| Every 30,000 mi | Transmission fluid and connector plug |
| Every 40–50,000 mi | Clean EGR valve and replace air filter |
| Every 2 yrs | Brake fluid flush, coolant inspection |
| Annually | Inspect grounds, injector area, and underbody rustproofing |
Final Thoughts
The T1N Sprinter remains one of the most reliable and easily serviceable diesel vans ever built. No DPF, no DEF, and minimal electronics - just solid German engineering.
With proactive maintenance and high-quality parts, your T1N can easily exceed 500,000 miles. Inspect, clean, document, and drive - it will reward you with unmatched longevity and character.
